3D Arena is a versatile multi-camera photogrammetry measurement concept that provides customers with unprecedented flexibility in setting up their measuring space and gathering location data.

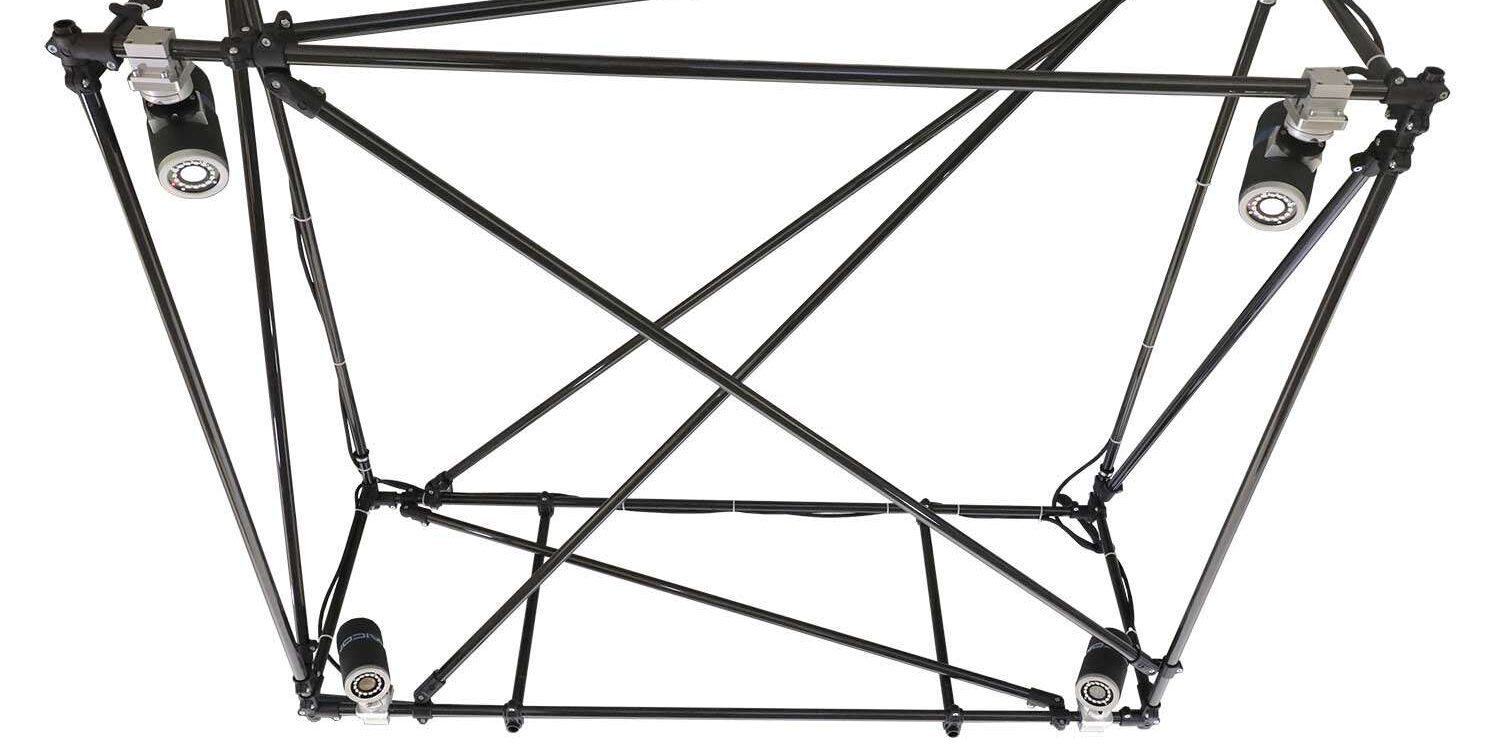

A constellation of high-definition cameras mounted on a high-stability carbon frame captures a continuous live feed of a signalized measuring object. This allows the 3D Arena to constantly track the location of the item, work tools, and testing equipment within the coordinate space, as every measurement is automatically converted into the object coordinate system.
Features and Benefits
Features:
– High-quality 8-megapixel cameras with exceptional resolution for maximum accuracy across the measurement volume.
– Sturdy construction: An extremely sturdy carbon frame with a built-in vibration damper allows the cameras to be mounted either vertically or horizontally.
– Infinite measurement: Provides object information and an arbitrary number of measurement points simultaneously (3D and 6DoF).
– Adaptable scale: Adjustable measurement volume because of the variable number of cameras.
– Multiple point and adaptor measurements can monitor complex assembly operations at once.
– Configurable: Unhindered vistas and a versatile use of space are made possible by either a vertical or horizontal arrangement.
– Compatible with the wireless handheld MI for probing: A probe for measuring regions that are hidden from view by the cameras.
– Continuous measurement: Targets enable multiple inspections without interfering with realignment procedures.
