Revolutionize the calibration and monitoring of machine tools and coordinate measuring machines (CMMs) with the ETALON LASERTRACER-NG. This cutting-edge technology offers unparalleled accuracy and affordability, streamlining the process of calibrating and adjusting medium and large machine tools. Unlike other measurement systems, the LASERTRACER uses a proprietary technique to provide a level of accuracy previously unheard of, completely correcting for mechanical faults in the linear, rotation, and swivel axes. Experience a new standard in precision and efficiency with the ETALON LASERTRACER-NG.
Quick and efficient measuring procedure

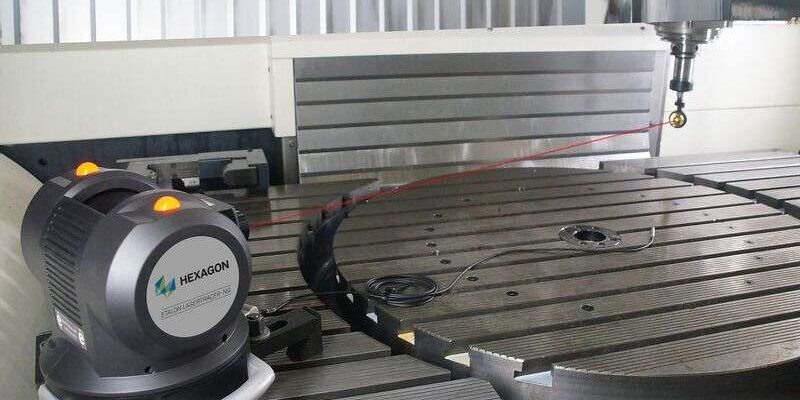

A typical cause of human mistake is the need for precise component alignment, which the LASERTRACER eliminates. Rather, an operator puts the reflector on the tool or probe after positioning the LASERTRACER inside or near the machine’s operating volume.
Features & benefits-
- Using volumetric compensation to increase the accuracy of multi-axis machines- The solution provides a log for the output of axis deviations in various forms and can instantly generate rectification data if necessary. This ensures the maximum accuracy of the CMM or machine tool.
- Effective CMM and machine tool testing and calibration-
The well-proven ETALON approach calculates the six degrees of freedom (DOF) of each axis and their squareness to one another, capturing the geometrical interaction of all machine axes.
- Standardized CMM and machine tool monitoring- All measures and computations adhere to ISO 230-2, -6, or VDI 3441, or optionally to ISO 230-4 (ballbar test) or ISO10360-2.
- Scalable solution for adaptable usage-
Spatial accuracies in the sub-micrometer range can be obtained with largely automated measuring routines in the whole working volume of a measuring machine or machine tool. The idea can be applied to machines of varying sizes.
- Time-saving and simple to use solution-
Because precise alignment is not required, it is simple to operate and saves time.
Technical data
| Details- | |
| Measuring uncertainty for spatial displacement (95%) | 0.2 µm + 0.3 µm/m |
| Resolution | 0.001 µm |
| Measuring range | 0.2 –20 m (larger machine dimensions are covered by stitching of measurements) |
| Angular range azimuth axis | -225° to 225° |
| Angular range elevation axis | -35° to 85° |
| Weight | 8.5 kg |
| Laser class | 2 M |
| Delivery | flight save transportation boxes |
