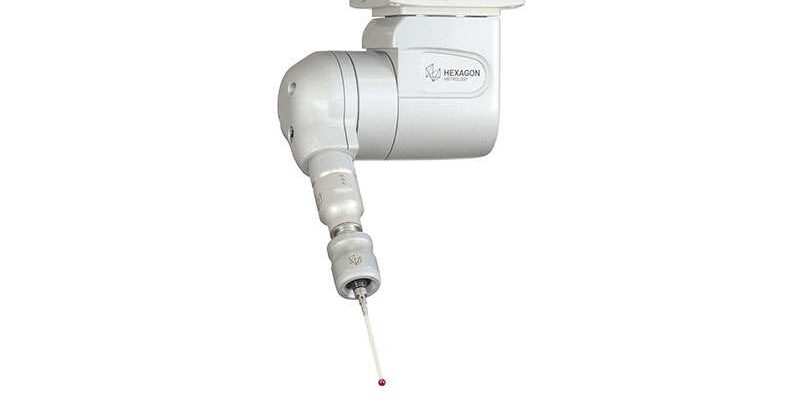

Due to the greater rotation range of the A Axis (± 180°), the HH-A-H2.5 can achieve 20,736 distinct positions and can index in 2.5° increments. The heavy-duty kinematic joint (HDKJ) on the head can connect to multiple wires, providing complete support for various sensors.
The HDKJ supports extensions of up to 750 mm. Its ability to withstand extreme rotational torque, combined with the HDKJ adapter, allows laser scanners and scanning heads to be positioned farther from the axis of rotation than traditional probe heads can accommodate. The HDKJ can be replaced automatically using the HR-R tool changer, which is available with the optional HR-RH heavy-duty module changer, or it can be replaced manually without the need for requalification.
