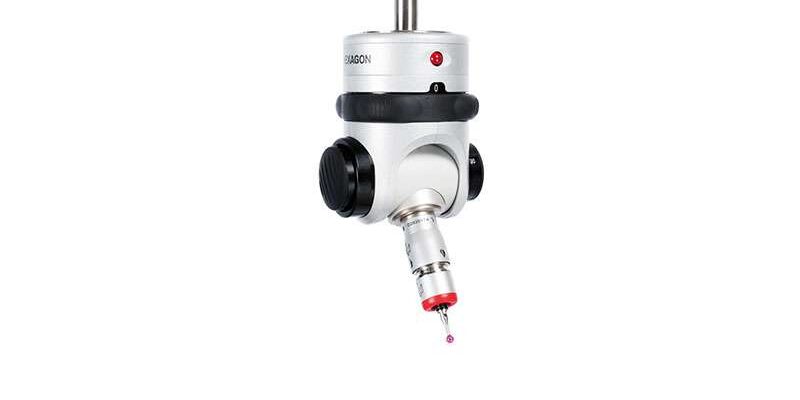

The HH-MI-M probe head features a precise indexing probe stylus that allows for rotation in 15° increments, enabling it to reach a total of 168 distinct positions without the need for recalibration. Any probe or accessory with an M8 connection is compatible with this device. The probe head is designed with separate windows for angular movements A and B, making it easy to see the exact angle at a glance. Users can manually disconnect the HH-MI-M, and they benefit from tactile and visual feedback that indicates the angular position of the ball probe.



Features & Benefits

  • This feature ensures extremely accurate measurements while saving time, provided that repeated precision is maintained.
  • With 168 unique indexable positions and the ability for one-handed operation, the HH-MI-M is versatile and user-friendly.
  • It is compatible with all Hexagon Touch Trigger Probes, and the HR-P probe changer facilitates easy module changes.
 Angular rotation  A: 0° – 90°; B: +/- 180°
 Increments  15°
 Total number of positions  168
 Position repeatability  1,5 µm
 Extensions  M8/M8, max. Length 50 mm
 Adjustable trigger force  0.1 to 0.3 N
 Axis clamping  Manual, by two buttons on the probe head
