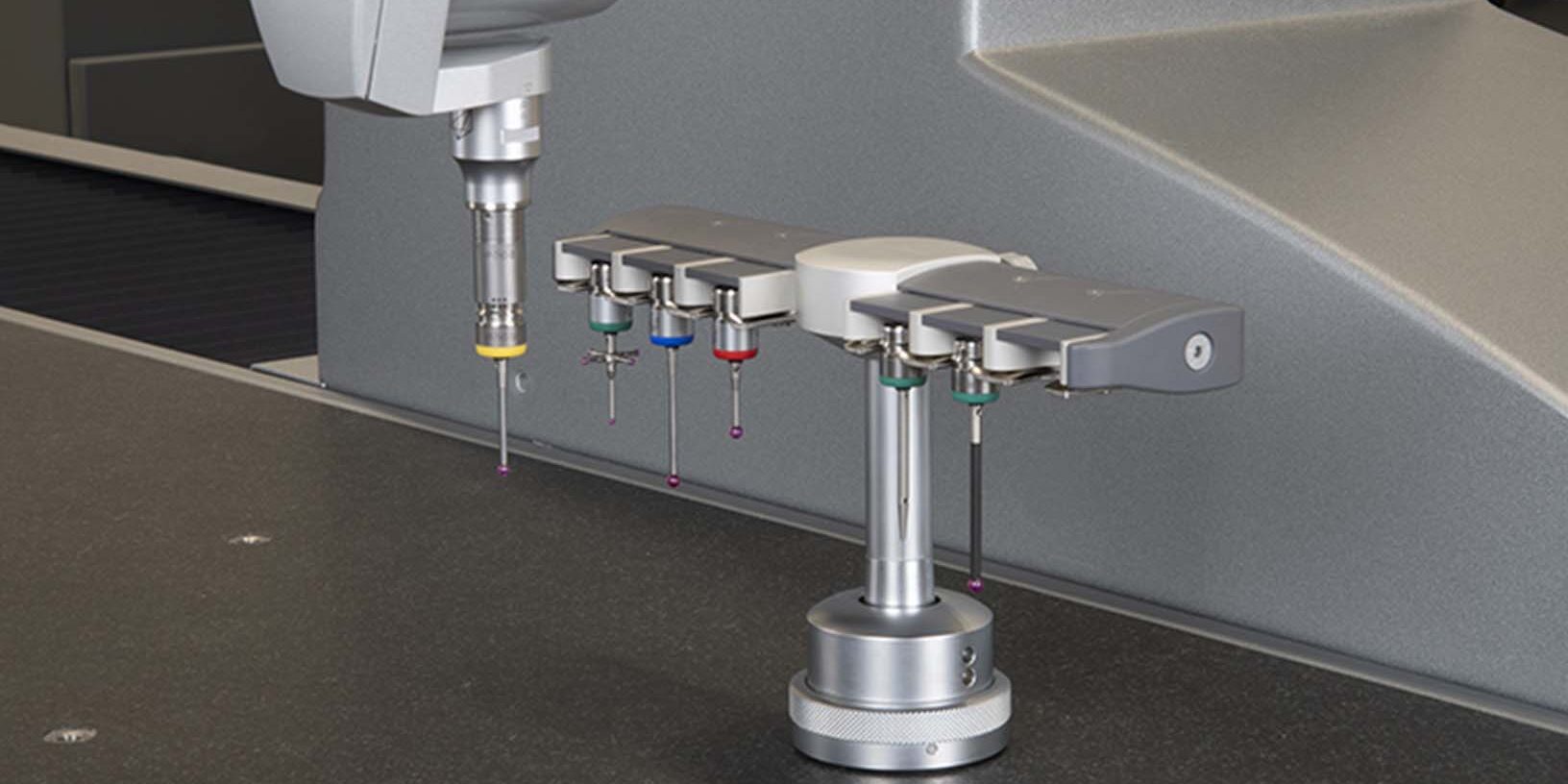

The HR-MP rack simplifies the process of changing probe modules and styli during measurements. It can hold up to six probe modules with different stylus configurations, allowing users to take measurements without interrupting the process to manually switch out the probe or stylus. Due to its mechanical design, the rack is easy to remove from the machine table and can be replaced without the need for recalibration. This means that it can be temporarily taken out if additional space is needed on the table or if it interferes with measurement tools. The rack features a modular design and can be adjusted in height from 90 to 250 mm.
Features & Benefits
Modular Setup
Customers can quickly adapt to changing requirements by adding additional modules or customizing the system to suit their needs.
Easy Machine Alignment
To optimize table space, machine users only need to take a few simple steps to remove the rack from the table. There is no need to readjust the system after placing the rack back on the table.
Sturdy Construction
Specially designed ports provide optimal protection for stylus configurations and probe modules. The system is also shielded from crashes and collisions.
Simple Installation and Integration
The HR-MP is a passive rack, meaning it does not require any cables or machine connections. It can be set up in just a few straightforward steps.
Technical Data
| HR-MP3-90 03939480 |
HR-MP6-90 03939481 |
HR-MP6-150 03939482 |
HR-MP3-150L 03939499 |
|
| Number of Modules | 3 ports | 6 ports | 6 ports | 3 ports |
| Height C (mm) | 88 | 88 | 148 | 146 |
| Width A(mm) | 150 | 245 | 245 | 74 |
| Depth B(mm) | 78 | 78 | 78 | 74 |
Recommended module change speed: 10mm/s;
Maximum module changer speed: 100mm/s;
Maximum entry speed into the rack: 800 mm/s;
Overtravel in X and Y-axis (only for rack with crash protection included):
- Rack 150mm : 20 mm
- Rack 90mm : 20 mm
Overtravel in Z-axis:
- Rack 150mm: 10 mm
- Rack 90mm: 10 mm
Precision of alignment:
- X- Axis +/- 250µm;
- Y- Axis +/- 250µm;
- Z- Axis +/- 150µm;
