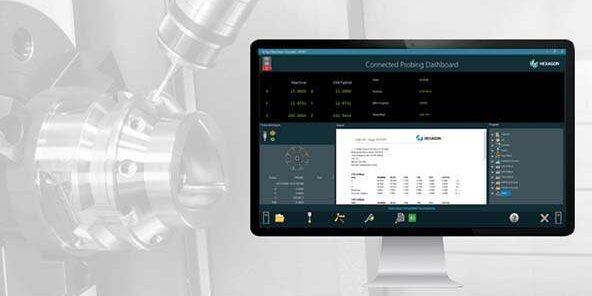

NC Gage transforms machine tool probing. Even on multi-tasking and five-axis machines, the user may write measuring programs without any prior programming experience because to the novel “Teach-in” technique and its ease of use.
Coordinate measurement devices employ the same PTB-Certified algorithms as HxGN NC Gauge. This enables NC Gage to build confidence in manufacturing processes and provide the highest level of precision to machines. Measurement is not restricted to 2D features or a set number of points. Additionally, basic GD&T functions, feature angles, and distances are offered.
The HxGN NC Gage can be found embedded in the control panel or on a Windows computer. At the moment, Makino, Mazak, Okuma, DMG Mori, Mitsubishi, Fanuc, and other controls are compatible with it.
Features & Benefits
Superior measurement capabilities
Utilize as many functionalities as you like for automatic part setup and measurement. For example: mid-points, bores, or constructed points
Easy to use with a special Teach-In feature
Without any prior knowledge of macro programming, the machine user may effortlessly establish measurement cycles thanks to the dialog-based interactive teach-in method.
Using 5-axis equipment for measurement (Option)
For 5 axis machines to be used effectively, workpieces must be measured and set up quickly. Regardless of the 5 axis kinematic type being utilized for machining and measurement, HxGN NC Gage makes this easier than before.
Taking measurements on multitasking devices
NC Gage is made to support difficult machining tasks and be used on contemporary multitasking machines. Adding completely automated gauging, setup, and inspection to multi-spindle processes is made easier by special functionalities.
