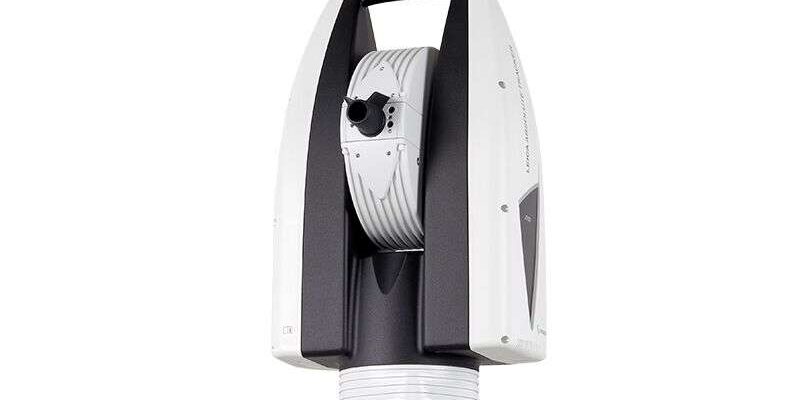

With the Leica Absolute Interferometer (AIFM), the next generation 3D laser tracker, the Leica Absolute Tracker AT930 stands out from competitors thanks to its fast dynamic measurement capabilities. It offers a quick, precise, and easy-to-use method of measuring reflectors due to its automatic target localization, real-time architecture, and ability to quickly restore an interrupted beam. The strong integrated technology design of the AT930 allows it to measure in even the worst conditions without the need for additional accessories, as it has IP54 certification from the IEC.
Apart from variozoom 6DoF compatibility, the Leica Absolute Tracker AT930 is identical to the AT960 in 3D, making it the perfect choice for high-speed measurements in volumes up to 160 m.
The latest version of the PowerLock active vision technology ensures that operators no longer need to worry about breaking the beam. The laser automatically tracks the user and re-establishes an interrupted beam with an average uncertainty of just 10 µm. With a real-time operating system, it can achieve a measurement rate of up to 1000 points per second. The AIFM provides the precision and measurement speed of an absolute distance meter and an interferometer.
The tracker comes with an all-in-one design, making it easy for users to unpack and start measuring. It includes an overview camera, environmental monitoring capabilities, and leveling equipment.
Features & Benefits
- Operators may remotely observe the tracker’s field of vision thanks to high-resolution color OVC. This makes it possible to locate targets to measure to permanent reflectors and handle many spots in a single image, which is perfect for stationary hidden point devices or to add to documentation.
- When measuring with the Z-axis aligned to gravity, as with tool construction and inspection and jig fixturing, the OTG feature makes this possible.
- In the realm of Industry 4.0, Metrology Asset Manager is the top asset performance management system, and the AT960/AT930/ATS600 is fully compatible with it. Metrology Asset Manager, which is a crucial component of any smart manufacturing strategy, is based on real-time data collected and reported through a centralized, user-friendly dashboard. It has been optimized for the management of laser tracker-based systems.
- A measurement rate of up to 1,000 points per second is possible with real-time architecture with dynamic performance, allowing for the faster and more thorough collection of data.
- Wherever the tracker is needed, an independent hot-swap battery power supply enables a fast and simple cable-free setup that improves portability and provides a versatile solution that lasts up to a day’s shift.
- With built-in Wi-Fi, a single person can run the tracker with ease thanks to its easy setup and communication with the PC for totally wireless operations. It also offers remote control possibilities via laptops, tablets, or smartphones.
