Leitz PMM-C Coordinate Measuring Machines (CMMs) are high-end metrology instruments designed for exceptional accuracy and precision in a variety of applications. These machines provide rapid, ultra-high accuracy readings that meet stringent inspection specifications. The latest generation of Leitz PMM-C machines offers unique configurations and capabilities tailored to meet the specific demands of different applications, delivering outstanding accuracy throughout the series. For applications that require both sensor flexibility and high precision—especially those with extremely tight form tolerances—there are Precision and Flexibility base versions available.

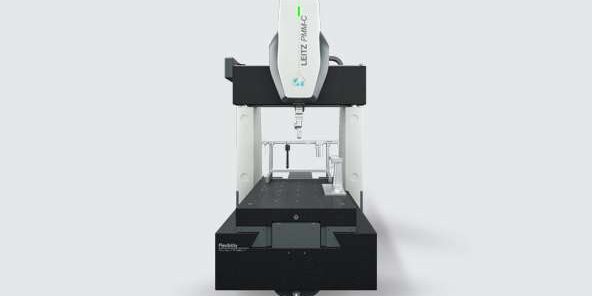

The Leitz PMM-C Flexibility model is designed to reduce cycle time and enhance the machine’s adaptability to challenging applications and complex part features. This model serves as an effective measurement solution that combines precision and flexibility.
Features and Benefits
Closed-Frame Layout
The fixed entrance and granite base ensure long-term stability. The high rigidity of the measurement axis guarantees consistent accuracy throughout the measuring volume.
Table in Motion
An effective and precise traveling measuring table on pre-loaded air bearings ensures stable dimensional relationships and prevents tilting or twisting during movement.
Conserve Energy and Air
Eco Mode+ reduces the use of compressed air, contributing to a more sustainable future. It minimizes total air consumption during standard measuring procedures and can save up to 100% of compressed air when the machine is not in use.
Lights for Messaging
Stay informed about the CMM’s actions. The machine’s messaging lights provide a quick way to monitor its working state.
Fast Speed and Security
Two 2D laser scanners provide monitoring, ensuring worry-free high-speed measurements in CNC mode. When a user or object enters the protected area, the machine will automatically stop.
High Precision and Speed
Fast measurements are supported by servo drives equipped with recirculating ball screws. The CMM can achieve high speeds even with small movement pathways, as it accelerates quickly without compromising positional precision.
Sweet Spot (Combination of Accuracy+)
Achieve the highest levels of accuracy when measuring features or small parts with extremely tight tolerances, utilizing only a small portion of the available measurement volume.
Measuring volume
| ype | X (Width) | Y (Depth) | Z (Height)* |
| 12.10.7 | 1200 mm | 1000 mm | 680 – 700 mm |
| 16.12.10 | 1600 mm | 1200 mm | 960 – 1000 mm |
| 24.12.10 | 2400 mm | 1200 mm | 960 – 1000 mm |
| 24.16.10 | 2400 mm | 1600 mm | 960 – 1000 mm |
* Values depend on selected sensor configuration
