Data Temperature and measurement data are reliably transmitted via the IRR91.42.This device can interact with infrared tool setters and M&H infrared probes. It allows a single machine to connect to three different probing systems simultaneously. The compact stainless steel enclosure contains all necessary components.
Applications include machining centers, milling machines, vertical turning machines, and turning/milling centers.
Key Features:
– Direct machine control connection, eliminating the need for an additional electronic module.
– Suitable for multi-axis devices with a rotating head.
Benefits:
– The HDR (High Data Rate) and HDR+ infrared transmission systems remove the influence of ambient light on measurements.
– The device is robust and fully waterproof, meeting IP68 standards for measurement and temperature data.
Features & Benefits
- Sturdy and Water-Resistant
The IRR91.42 features only Viton seals and a housing made of stainless steel, making it well-suited to meet the needs of machine tools. - Supported Temperature Probe
The Infrared Temperature Probing System, IRP25.50-TP from m&h, is compatible with the IRR91.42. This proprietary technology enhances the performance of your machine tool in several ways. - Installation in the Headstock

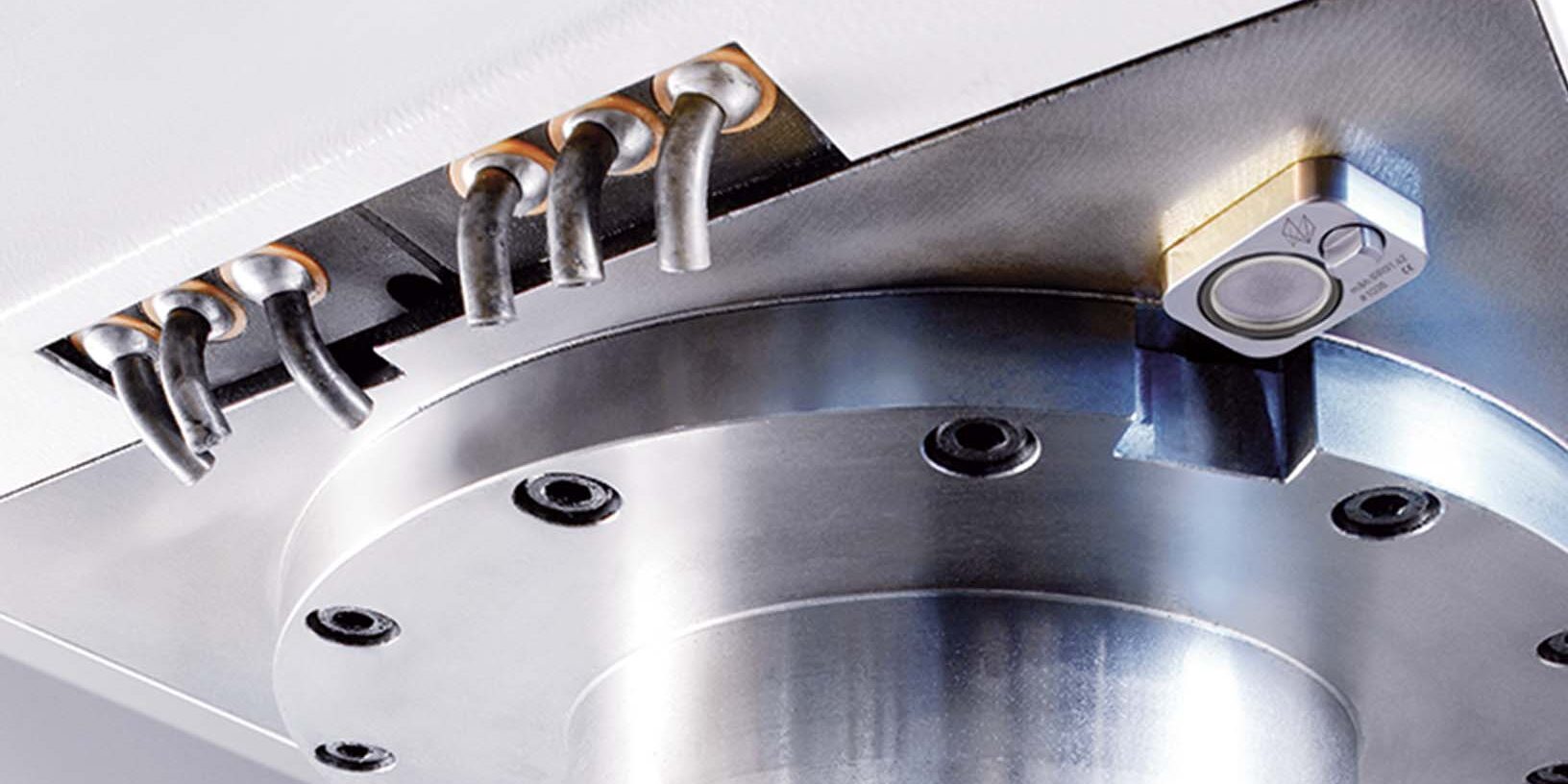

Due to its compact size, the IRR91.42 can be easily installed directly in the headstock and is compatible with any machine.
Technical Data:
| Signal evaluation | High data rate (HDR-Bidi (B) and HDR+)* |
| Power supply | 12 – 30 VDC, max. 100 mA |
| Weight | 100 g |
| Temperature range | Operation: 10° – 50°C Storage: 5° – 70°C |
| Material | Stainless steel |
| Sealing | IP68: EN60529 IEC529/DIN40050 (attached) |
| Mounting | Air blow screw, M4 thread |
| Connection | Industry standard 8-pin plug, M12x1 thread |
| Shock tested | In ±X, Y and Z 500G for 7 ms 5,000 times |
| Load resonant frequency | Test passed |
*HDR+ is only possible in conjunction with IRP25.50 (mechanical activation and activation code A or C) and IRP40.02
