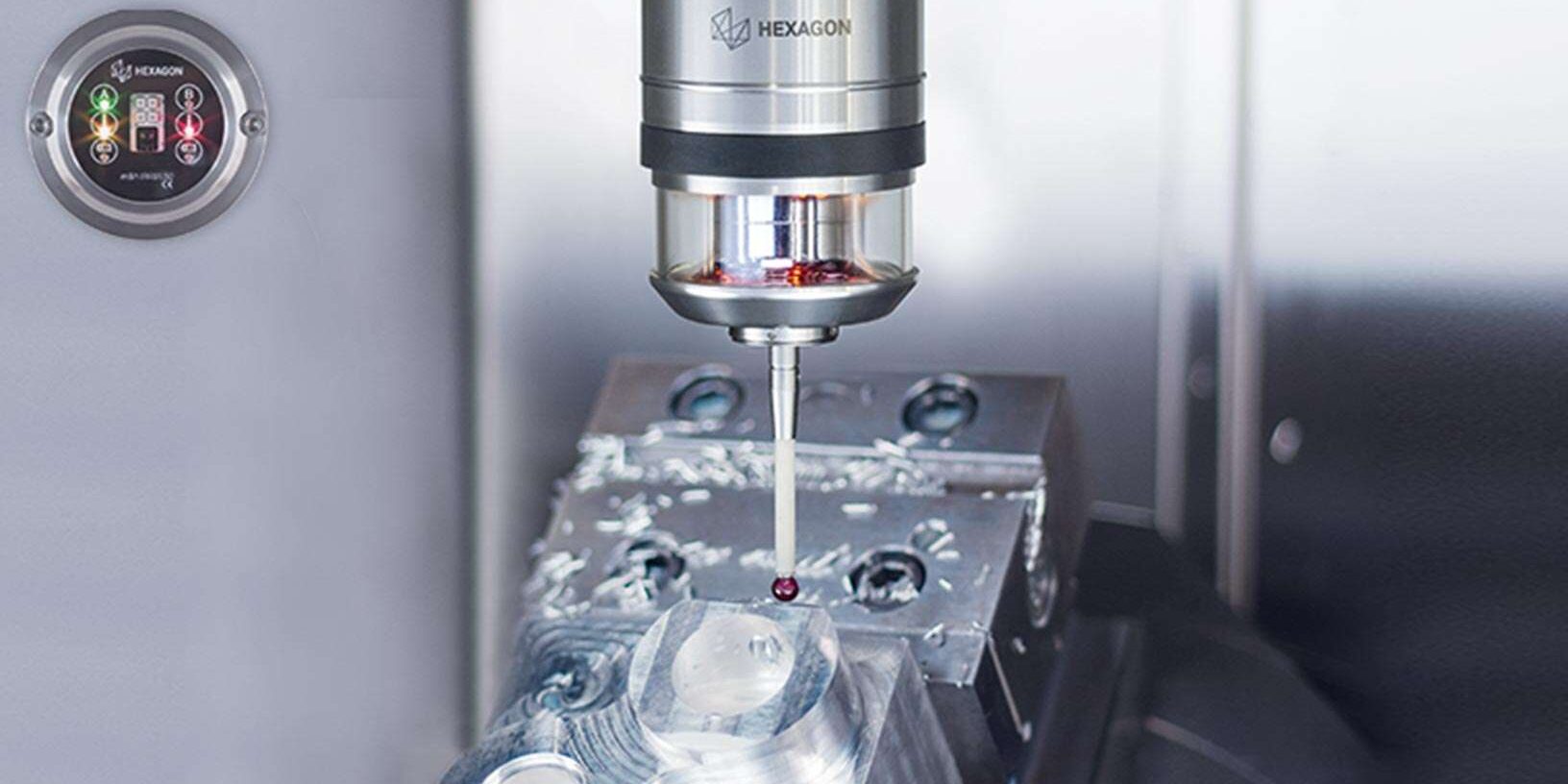

The modular design of the new bidirectional probe, m&h IRP 25.50, is one of its standout features. It allows for the use of various cross-probes, extensions, and measuring units, making it easy to adapt the probe to future needs and different machine tool applications. There are plans to develop additional measuring devices and sensors that will be compatible with this system.
With a single IRR91.50 receiver, the latest generation of m&h probes can operate two IRP25.50 probes simultaneously. This functionality is particularly beneficial for measuring both spindles at the same time in double-spindle machines.
Key applications of this system include:
– Establishing the workpiece zero point
– Determining the position of the workpiece
– Verifying the dimensions of the workpiece
– Concurrent measuring on machines with two spindles
Advantages:
The future-proof IRP25.50 is compatible with several measurement systems.
The P41.00 features a three-leg design for the measuring unit, while the temperature measuring unit TP44.10 MY21.00 is equipped with a hemisphere system.
It incorporates a patented dual-probe technology developed by M&H.
The high-speed pre-positioning and ITE technology (Intelligent Trigger Evaluation) eliminate disruptions caused by extraneous light. Additionally, HDR+ technology (high data rate+) supports third-party protocols from competitors.
Features & Benefits
MODULAR PROBE SYSTEM
Features:
– Easily modifiable by simply screwing in components.
– The system supports multiple M&H measuring mechanisms.
– A single system foundation can accommodate various applications.
– The Z+ Carbon extension probe allows for cross-temperature probe reverse measurements.
Benefits
– Offers various measurement methods for a single system.
– Economical for a wide range of needs.
Flexibility reduces storage costs.
– Prepares for future integration of new m&h measurement devices!
Technology: HDR+ (High Data Rate Plus)
Features:
– Distinct from the global line frequencies of 50 Hz or 60 Hz.
– Modulation frequency is 455 kHz.
– Provides a very fast data rate for secure information transfer.
– Features true 360° directional quality that is uniform, achieved through a design that utilizes mirrored surfaces.
– Offers an exceptionally long signal range.
– Optimizes battery usage without compromising process reliability.
– HDR+ performance enables bidirectional activation using an independently coded ON/OFF signal.
Benefits:
– Absence of ambient light interference
– The safest method for transmitting infrared signals
– Improved HDR+ technology
– Enhanced transmission power and optimized energy efficiency
Intelligent Trigger Evaluation (ITE Technology)
Features:
– Considers trigger signals
– Filters out shocks and vibrations from machines
– No need to increase trigger force while maintaining accuracy
– Eliminates measurement errors caused by improper switching
– Reduces cycle times through quick pre-positioning
Benefits:
– Decreased cycle times without compromising process reliability
– ITE technology enables high-speed pre-positioning at speeds up to 50,000 mm/min
– Utilizes the One Touch Strategy for quick and accurate probing at speeds of up to 2,000 mm/min
