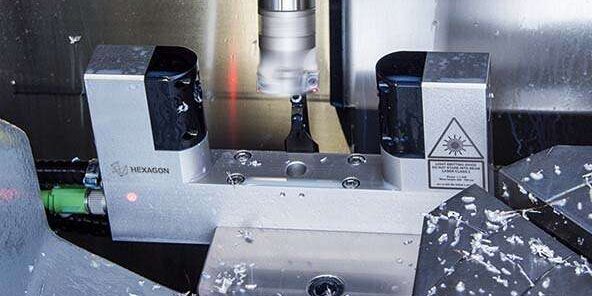

m&h laser tool setter LTS35.65

The standard laser tool setter is designed for non-contact tool measurement, ensuring reliable and efficient machine setup, as well as effective tool wear and breakage management. This low-cost system offers significant advantages compared to traditional instruments, making it suitable for measuring tools with diameters starting from Ø 0.030 mm.

The electrical connection is simpler than that of conventional systems. Typically, only an air curtain connection from the on-board pneumatics is required. Additionally, the control only needs two spare M functions, which simplifies electrical installation and reduces overall machine-related expenses and labor.

Uses:
– Calculating tool length
– Measuring tool radius
– Identifying damaged tools

Features & Benefits

LASER OPTICS

– Focal Point: 50 μm
– Smallest Tool Diameter: 30 μm

Quick Tool Breakage Control in Nearly Any Situation
TCS: THE HIGHEST PRECISION TRUE CUTTING SCAN

Features:
– Analyzes the longest cutting circle.
– Identifies the longest cutting circle diameter.
– Utilizes this information for precise length measurement.

Accurate Tool Length Measurement

Benefits:
– Establishes the actual tool length.
– Provides extremely accurate length measurements.
– Includes premium features exclusive to M&H.

Cleaning Tools with Laval Nozzle

– Laval Supersonic Pressure Nozzle:
Cleans the tool while it remains in the measuring position.
For optimal cleaning results, use a nominal rotation speed during the cleaning process.
Minimal distance required for effective cleaning.
A sealing cap prevents liquids and foreign objects from entering.

– Pseudo-Shutter Unit:
A complete shutter unit for closure.
Facilitates air blast cleaning without the need for additional air pressure.

Technical data
