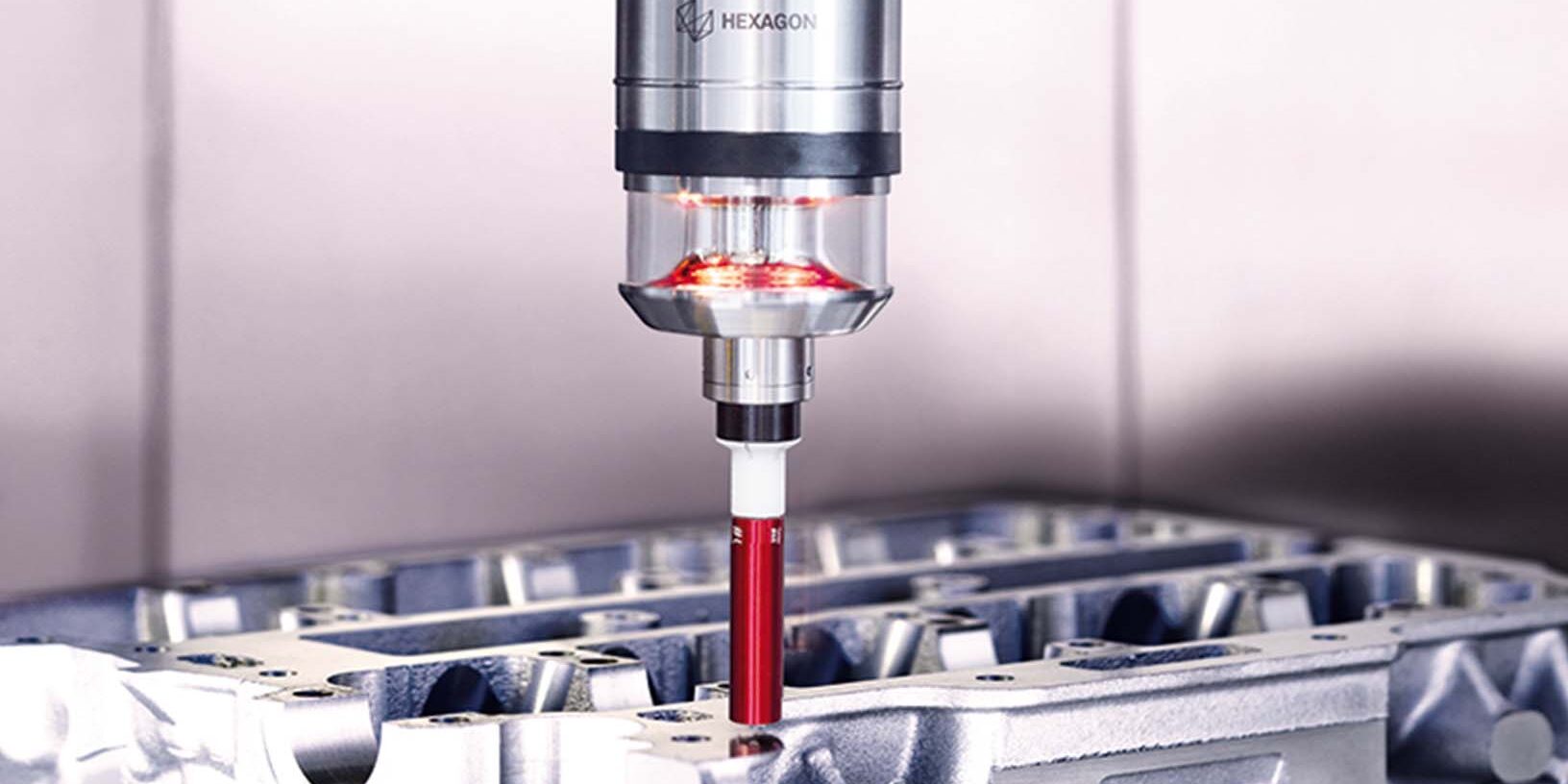

m&h Temperature Probe IRP25.50-TP

The m&h IRP25.50-TP temperature probe ensures that workpieces are machined only when the temperature is suitable, resulting in highly accurate production outcomes.

Ideal for high-value workpieces, the m&h IRP25.50-TP utilizes advanced technology to automatically detect the temperature of a workpiece within seconds, both before and during machining. This capability allows for adjustments to machining parameters during production, giving operators greater control over the manufacturing process.

The modular design of the m&h IRP25.50 enables the use of various measuring units, extensions, and cross-probes. Users can easily replace the temperature unit with a standard machine tool probing unit, allowing them to optimize the probe for future needs and machine tool applications. Additionally, the bidirectional probe facilitates communication with multiple probe systems on the same machine.

Features & Benefits

• The system ensures that workpieces are only machined when they are within predetermined temperature ranges, thereby reducing production rework time and costs.
• It can detect the temperature of the workpiece in just a few seconds. Fast and secure information transfer is facilitated by the wide transmission and receiving angles.
• Measurement interference is prevented through High Data Rate+ (HDR+) infrared transmission.
• The system boasts a battery life of one thousand hours.
• By using the m&h IRR91.42 and m&h IRR91.50 infrared receivers together, there is no need for additional control cabinet modules or interfaces.

Technical data
