Radio-wave probing systems
Direct in-process measurement can be achieved using radio-wave touch trigger probes mounted on the machine tool.
Production probe systems
To facilitate in-process measurement on machine tools, production probes are equipped with precise measuring mechanisms.
NC measuring software
Software designed for on-machine measurement applications, which covers everything from complex quality analysis to critical dimension verification.
Machine tool laser scanning
Laser scanners on machine tools can quickly capture all surface information of a part while it remains clamped. This enhances the speed, accuracy, and flexibility of machine tool inspections, decreasing the need for external measuring equipment.
Laser tool setters
M&H laser tool setters enable non-contact tool measurement, automatically checking for tool wear or breakage.

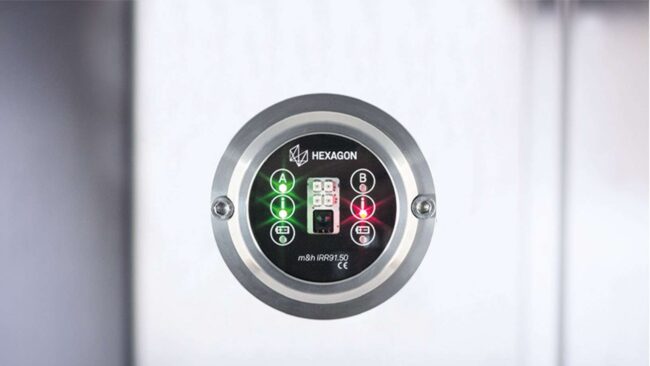

m&h infrared receiver IRR91.50
The bidirectional infrared receiver IRR91.50 enables simultaneous communication with two probing systems on the same machine. It is compatible with all M&H infrared probes and tool setters, featuring wide transmission and receiving angles. There is no need for an additional interface in the electrical cabinet, as all necessary components are integrated within the durable stainless…

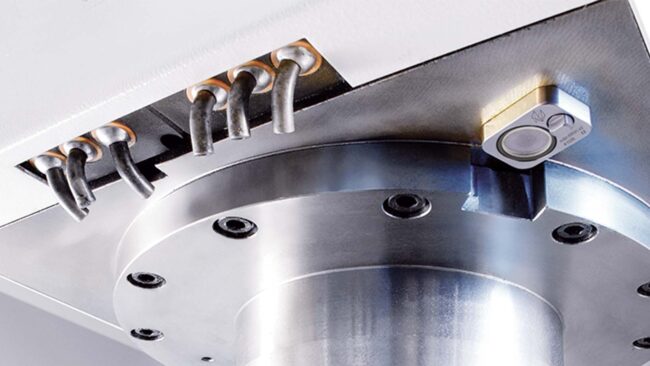

m&h Infrared Receiver IRR91.42
Data Temperature and measurement data are reliably transmitted via the IRR91.42.This device can interact with infrared tool setters and M&H infrared probes. It allows a single machine to connect to three different probing systems simultaneously. The compact stainless steel enclosure contains all necessary components. Applications include machining centers, milling machines, vertical turning machines, and turning/milling…

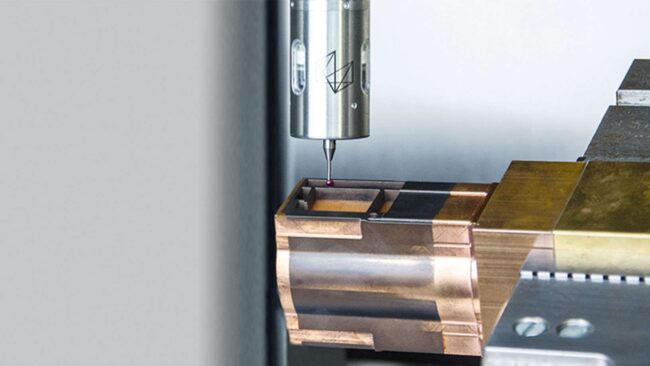

m&h infrared probe IRP40.50
The ultrasmall infrared probe IRP40.50 measures only 25 millimeters in diameter and 42.4 millimeters in length, making it suitable for compact machining machines. Its design allows for sufficient room for Z-axis measurements without the risk of collision. The IRP40.50 has a low probing force of 0.7 N (in the X/Y directions), which makes it accurate…

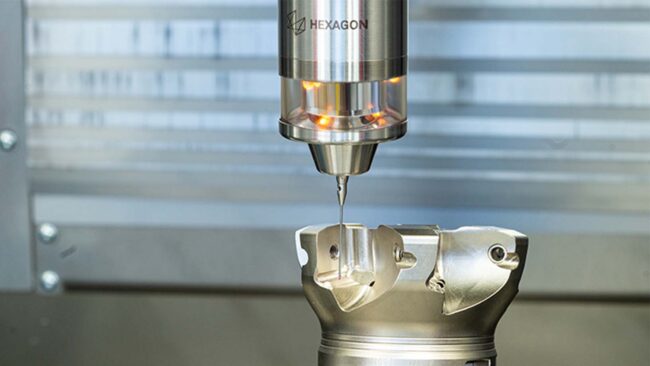

m&h Infrared Probing System IRP40.42
The IRP40.42 infrared touch probe was specifically developed to measure delicate materials and intricate workpiece geometries in challenging machine tool environments. Designed by Hexagon, the IRP40.42 is a highly versatile touch trigger probe that enables quick and reproducible measurements on coordinate measuring equipment. It also incorporates the advantages of the IRP40.02 touch probe. Even when…

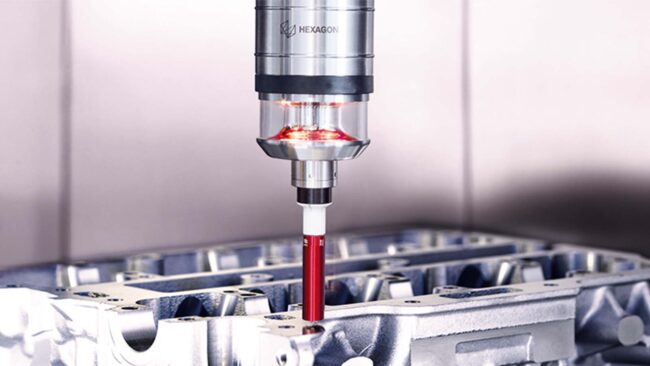

m&h Temperature Probe IRP25.50-TP
The m&h IRP25.50-TP temperature probe ensures that workpieces are machined only when the temperature is suitable, resulting in highly accurate production outcomes. Ideal for high-value workpieces, the m&h IRP25.50-TP utilizes advanced technology to automatically detect the temperature of a workpiece within seconds, both before and during machining. This capability allows for adjustments to machining parameters…
