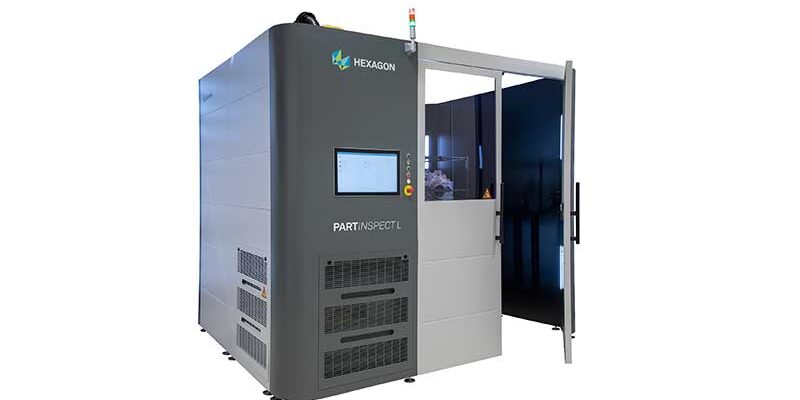

With the PartInspect L, a modular robotic inspection cell idea that makes high-speed, high-accuracy measurement on the shop floor easier than ever, the initial steps into the realm of smart manufacturing are now easier than ever.
With minimum operator training needed, the PartInspect L, which is based on the StereoScan neo or PrimeScan scanning technology, combines a strong robot arm with high-end structured-light scanning technology to provide an unparalleled degree of quality control reporting right on the shop floor.
Sharp-end operators may easily choose from and start any preconfigured robot programs using PartInspect L’s integrated touchscreen kiosk interface. They can then check inspection reports right after the measuring process is complete.
DPA Online
The specially designed DPA Online system makes it simple to add a photogrammetry referencing system to any PartInspect L configuration. DPA Online, a hardware and software solution, offers customized robot programs for every configuration and fully integrates photogrammetric analysis into the measuring program workflow. The PartInspect L system’s measurement geometry is strengthened by the addition of DPA Online, which also ensures precision to within 50 microns over the whole measurement volume. The DPA Online system, which may be purchased now or upgraded later, consists of attaching a high-resolution camera unit next to the PartInspect L scanner. It is especially designed for users that have difficult part applications, including measuring flat, thin, or very large parts.
Features & benefits
- Advanced Scanning Component
The Advanced Scanning Component is based on the structured light scanning technology found in the StereoScan neo 16MP, StereoScan neo 8MP, and PrimeScan. The Inspect L cells are available in three primary configurations: HiRes, HiEnd, and Efficient.
2. Simplified Planning for Scans
The PartInspect L system features an Offline Programming software tool, offering an intuitive interface for scan planning. This tool can be used for planning while another program is running, either at the cell or from a different remote workstation. This significantly reduces downtime between programs.
3. Streamlined Scan Management
The integrated touchscreen kiosk of the PartInspect L provides a “one-button” interface that allows users to select and execute preset measurement programs easily. It also offers a summary of results immediately following the measurements.
4. Flexibility at Turnkey
The PartInspect L features a modular hardware design that allows for easy installation and customization for various applications. While a roofless configuration is standard for convenient loading of heavy parts, a roofed version is an excellent alternative for measurement in challenging environmental conditions.
5. Easy to Use
The PartInspect L is designed to provide a straightforward automated measurement system that requires no training. Its primary operational features are built to eliminate the need for any specialized knowledge of robot programming.
6. High Load Capacity
The system’s turntable can support loads of up to 2000 kg. Additionally, the extra-wide entrance of the PartInspect L cell can easily accommodate items with a height and diameter of up to 1.5 meters, making it ideal for rapid processing.
