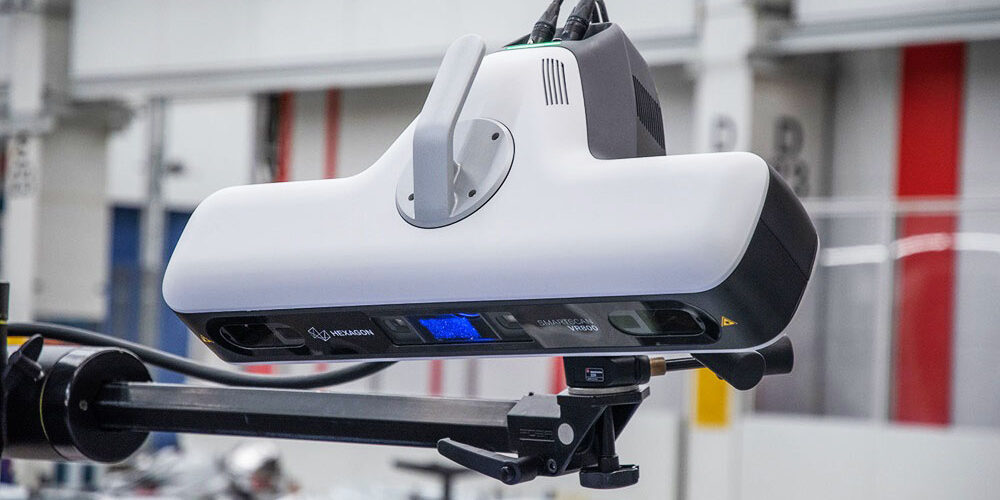

The user can adjust the data resolution while maintaining a constant measurement volume, thanks to the Smart Resolution feature of VR800.
Data can be integrated into a single project, allowing the user to switch between six different program configurations.
Each pair of cameras offers three resolution settings: 5 MP, 12 MP, and 20 MP, with an X,Y resolution range of 238 to 49 microns. Using the Smart Zoom feature of VR800, the user can modify the scanner’s measuring volume and resolution while preserving 5 million data points for efficient processing.
Each pair of cameras also has three measuring volume options. The smallest measuring volume is 160 millimeters, and the largest is 800 millimeters. Switching between these volumes enhances the X,Y resolution from 238 to 49 microns.
This combination speeds up the entire scanning process while also drastically lowering the number of targets needed and increasing the target measurement volume.
The Smart Snap feature of the VR800 allows the multi-camera setup to operate in a unique way, utilizing all four digital camera units simultaneously to capture orientation and scan data. By employing an LED flash, the system can also capture target locations that extend beyond the 3D scanning area, aiding the inner camera pair in aligning the 3D scan data.
This integration not only accelerates the scanning process but also significantly reduces the number of targets required and expands the target measurement volume.
Features and Benefits
- Focused Measurement
By combining scans, multi-camera processing significantly reduces processing times and data size, allowing for nearly instantaneous collection of measurement data and part orientation using Smart Snap. - Resolution Variation
The mechanical zoom lens of the digital projector allows you to quickly adjust the measurement area and resolution for each pair of cameras.
- Sturdy Construction
A custom carbon fiber frame provides exceptional stability in shop floor environments, ensuring reliable measurement results. - Intelligent Processes
Smart Resolution enables you to capture more detail where it matters most by adjusting data resolution throughout a consistent measurement volume. Smart Zoom facilitates high-speed data processing, allowing you to modify measurement volume and resolution while maintaining 5 million data points.
In shop floor circumstances, a custom carbon fiber frame provides unparalleled measurement stability and dependable results.
- Ergonomic Design
The compact design protects the optics, and the handy handle along with the integrated controller simplifies repositioning. - Unparalleled Accuracy
The accuracy values offered by the SmartScan VR800 are unmatched within its category. Each scanner undergoes an acceptance test based on VDI/VDE 2634 Part 3 before being shipped to the client. - Prepared for Automation
With its robust design and high-speed measurement capabilities, the scanner is ready for fully automated robotic inspection. - Quick Setup
Getting started with measurements is straightforward, thanks to its quick warm-up time, integrated controller, single-position calibration check procedure, and the absence of replaceable lenses.
