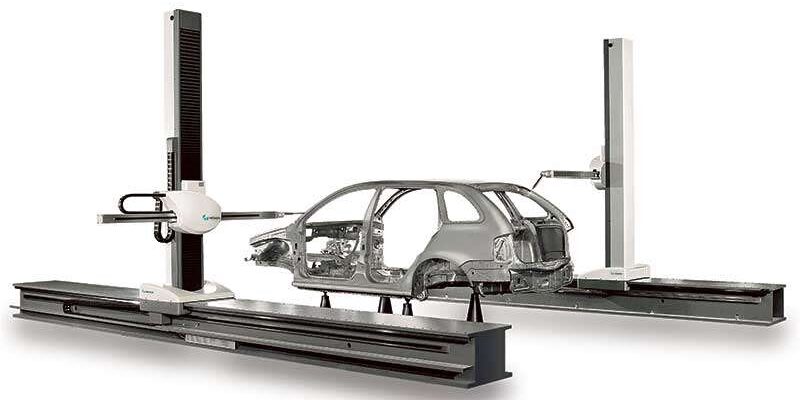

Introducing the TORO series: the ultimate solution for automatic horizontal arm measuring devices, specifically designed for precise dimensional inspection of large-scale and sheet metal components. The runway configuration, with its robust primary guideway anchored to the floor, offers an exceptional price-to-performance ratio that stands out in the market.
TORO measuring devices are not just tools; they are flexible gauges that enhance process control in any workshop setting and serve as essential metrology stations in engineering and development departments. Perfectly suited for the industrial design of intricate contoured shapes, TORO empowers you to achieve unparalleled accuracy and efficiency in your operations. Choose the TORO series for its innovative runway architecture and elevate your inspection capabilities today!
Features & Benefits
- To achieve exceptional resistance and reliability in industrial applications, our machine axes are expertly engineered to glide on stiff ball bearing pads, traveling along two precision guideways that are both ground and induction-hardened.
- The Z machine ram incorporates an innovative, safe, and backlash-free component that enhances the mobile carriage balancing system for superior performance.
- Additionally, a robust bellow cover effectively shields the Z axis guideways from harmful environmental impurities, ensuring longevity.
- Moreover, the conventional walkable or bellow covers for the main beam are rendered unnecessary, thanks to the strategically protected placement of the X beam guideways and the distinctive design of the movable carriage, maximizing both efficiency and safety.
Technical Data
| Model | X stroke [mm] |
Y stroke [mm] |
Z stroke [mm] |
Accuracy [µm] |
| 40.16.21 | 4000 | 1600 | 2100 | MPEE = from 30 + 25 L/1000 |
| 60.16.21 | 6000 | 1600 | 2100 | MPEE = from 30 + 25 L/1000 |
| 70.16.21 | 7000 | 1600 | 2100 | MPEE = from 30 + 25 L/1000 |
| 40.16.25 | 4000 | 1600 | 2500 | MPEE = from 33 + 27 L/1000 |
| 60.16.25 | 6000 | 1600 | 2500 | MPEE = from 33 + 27 L/1000 |
| 70.16.25 | 7000 | 1600 | 2500 | MPEE = from 33 + 27 L/1000 |
